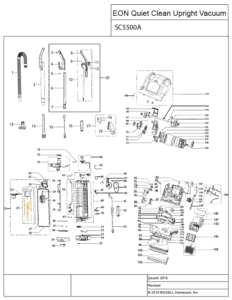

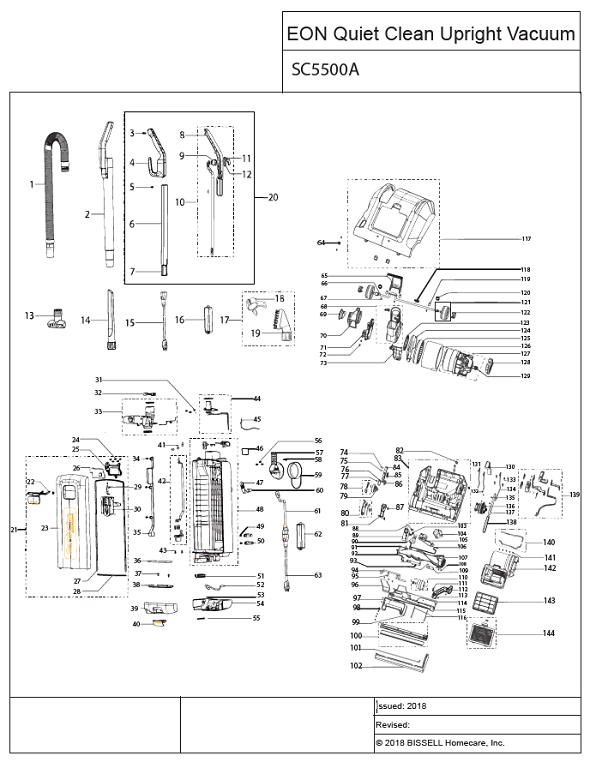

EON™ QuietClean® Upright Vacuum SC5500A Diagram

EON™ QuietClean® Upright Vacuum SC5500A Diagram             1. Hose Assembly A07535101 2. Wand Assembly A03787701 3. Screw Package 162194 4. Handle Grip A03784501 5. Screw Package 1621911 6. Tube - Handle A03785201 NLA 7. Plug - Handle A03786901 8. Cover - Handle  A03783401                         9. Switch A03785101 10. Handle Cover Assembly A07521301 11. Cap - Switch Button A03784901 12. Frame - Switch Button A03868301 13. Square Brush Assembly A07514801 14. Crevice Tool A03802701 15. Cord - Commercial Ext A05944001 REPLACEMENT 50 16. Cord Lock A03840301 17. Dusting Brush & Holder Kit 17379 SANITAIRE 18. Holder - Dusting Brush A05881801 19. Dusting Brush A05924601 20. Complete Handle Assembly A07520901              21. Front Cover Assembly A07522601 22. Dust Bag Release Button A03800301 23. Upper Body Cover A03801001 24. Screw Package 162194 25. Cover - Db Release Button A03800101 26. Gasket - Door Release A03801301 27. Gasket - Body Cover Upper A03801701 28. Gasket - Body Cover Lower A03801801 29. Protector - No Bag A03800801 30. Bracket - Dust Bag A03800601 31. Screw Package 162194 32. Hose Retainer Ring A03802601 33. Inner Cover Assembly A08700501 34. Screw Package 162194 35. Cord Cover Inside Body A03837801 36. Pre-Motor Foam A03831201 37. Screw Package 162194 38. Frame - Foam Filter A03831101 39. Front Cover - Upper Body A03828201 40. Upper Body Release Button A03828301 41. Wire Nut Package 173731 42. Lower Jumper Harness A07531801 43. Screw Package 162194 44. Handle Socket Harness Assembly A07531701 45. Ground Wire Assembly A07544101 46. Gasket - Ground Lead A04944001 47. Clamp - Cord A03868401 48. Back Cover Assembly A07521601 49. Screw Package 162194 50. Plastic Clip A03802801 51. Inlet Sealing Overmold A06032701 52. Upper Body Lock Rod A03828401 53. Spring - Body Release Button A03802901 54. Back Cover - Upper Body A03834401 55. Screw Package 1621910 56. Screw Package 162194 57. Carry Handle A03802301 58. Spring Package 5494313 59. Cord Hook A03802501 60. Power Cord Sleeve A03868601 61. Power Cord A03871801 62. Cord Lock A03840301 63. Cord - Commercial Ext A05944001 64. Screw Package 1621912 65. Pedal - Handle Release A03836401 66. Wheel Axle - Rear A03836201 67. Screw Package 162194 68. Swivel Assembly A07497401            69. Cover - Clean Out A12683001 70. Connector - Air Channel A03843301 71. Bracket - Swivel Connector A03834301 72. Screw Package 162194 73. Cover - Swivel Bracket A03834501 74. Screw Package 162198 75. Screw Package 162197 76. Clamp - Height Adj Knob A04650501 77. Screw Package 162194 78. Hgt Adjust Reset A07531601 79. Knob - Height Adjust A03841001 80. Brushroll Bearing & Cvr Assembly A07495201 81. Button - Br Release A03840401 82. Limiter - Motor Location A03835301               83. Base Assembly A07503501 84. Rod - Push A04944301 85. Spring Package 5494311 86. Guard - Side Furniture A03841201 87. Spring Package 5494310 88. Tube - Pressure Sensor A03844701 89. Pcb - Drive Board A03834601 90. Tube - Cooling A04965901             91. Brushroll Assembly - Cartoned 173691 92. Wire - Led A03834001 93. Pcb - Led A04944701 94. Shaft - Height Adjust A03841901 95. Axle Clamp - Packaged 532013 96. Cover - Air Channel A03843101 97. Cover - Height Adj Shaft A03841801 98. Screw Package 162191 99. Wire - Cord Saver 2 A04945001             100. Soleplate Assembly A07496801 101. Gasket - Front Soleplate A04966301             102. Guard - Front Furniture A03841101 103. Wire - Low Voltage A03830901 104. Pcb Cover A04654401 105. Main Pcb Assembly A07511201 106. Wire - Hall Sensor Signal A04654301 107. Brushroll Gear Assembly A03844801 108. Screw Package 162191 109. Pcb - Hall Sensor A03844501 110. Front Wheel Assembly A07496401 111. Block - Front Wheel A04944501 112. Cover - Nozzle Wire A03843501 113. Screw Package 162194 114. Gasket - Rear Soleplate A04966401 115. Rear Cover - Soleplate A04945101 116. Wire - Cord Saver 1 A03843001 117. Hood Assembly A07511801 118. Spring - Rear Wheel Axle A03836601 119. Axle Clamp - Packaged 532014             120. Clip - Rear Wheel A03837101             121. Rear Wheel Assembly A07531301 122. Cover - Rear Wheel A03836901 123. Gasket - Motor Bracket A03833501 124. Bracket - Motor A03833401 125. Mount - Motor Front A03833001 126. Foam - Sound Absorption A03832001 127. Motor Assembly - Packaged 173721 128. Mount - Motor Rear A03833201 129. Pulley - Motor A04654001 130. Cover - Motor Pulley A03836001 131. Wire - Motor Live A03842401 132. Wire - Motor Neutral A03842501 133. Screw Package 162199 134. Female Ground Wire A10054501 135. Washer Package 173711 136. Clutch Assembly A03871701 137. Belt - Motor A03837901 138. Belt - Brushroll A03838001              139. Nozzle Connector Assembly A07531501 141. Screw Package 162191 142. Motor Cover A03831901             143. Sanitaire Style Hf-50 Hepa 68904 144. Exhaust Cover Assembly A07531401 xx. Gasket - Clean Out Cover A04650601
